TECHNICAL DETAILS
LASISTAS 70CMR - STANDARD
DESCRIPTION PRODUCT Turning louvers for 70 x 11 mm wooden-slats.
30 mm top/bottom extensions with adjustable slat-holders.
Embedded profile
Lever-rotation.
MATERIAL Profile in aluminium and slat-holders in PBT
TREATMENTS Varnishing with polyester powder for outside.
COLOURS Standard colours: black
DIMENSIONI PROFILO 26 x 11 x 1 mm.
Scarica il PDF PDF

LASISTAS 70CMR assures:

  • - traditional shutter reproduction
  • - easy fitting by reverse-rotation accessory of slat-holders
  • - snap-shutting of slats
  • - screws fastening: central
  • - quality of product checked on each piece by our inward supervision.
lasistas70CMRlasistas70CMR

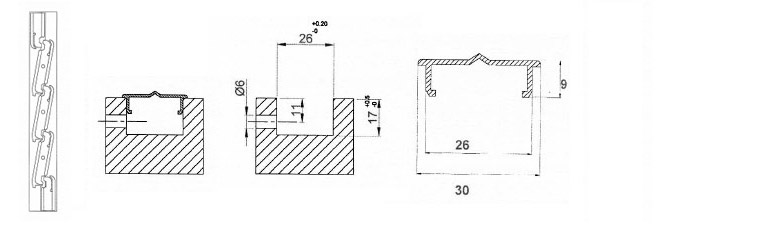

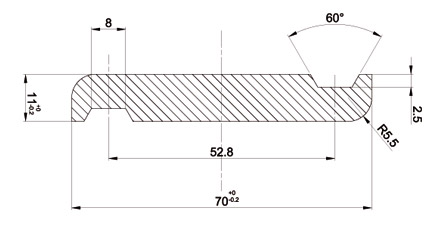

Section profile of the slat
lasistas70CMR

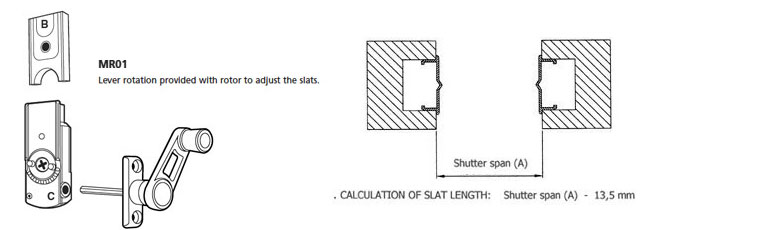

Instructions of mechanism fixing for turning the slats.
lasistas70CMR

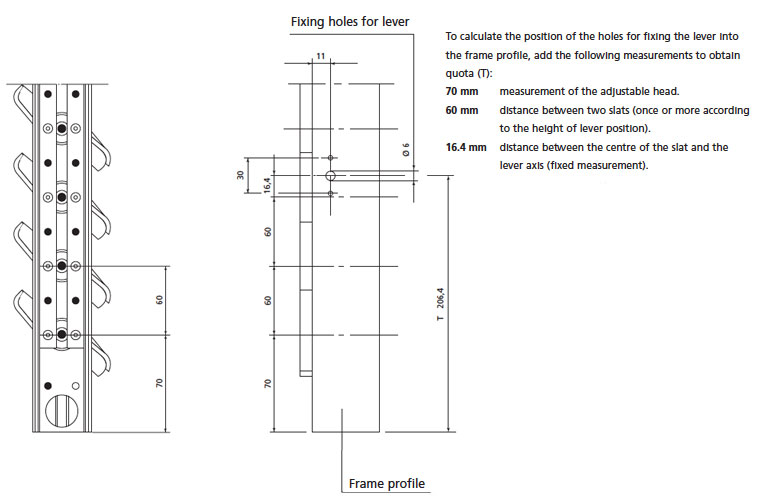

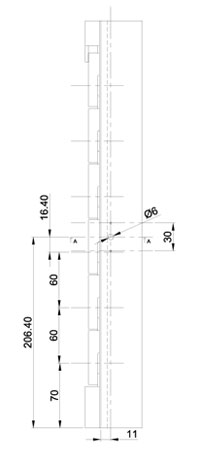

To obtain the hole position of the lever into the frame profile.
lasistas70CMR
How to assemble the PBT slat
lasistas70pbt
Slip in the previously treated slat: this should be done gently, as interference could cause stiffening of the closing mechanism.

Once the correct position is reached, the slat-holder will automatically block the slat in position.
Dimension LASISTAS 70CMR - STANDARD version
70CMR
SLATS controls PROFILE 26
h mm
6 1 440
7 1 500
8 1 560
9 1 620
10 1 680
11 1 740
12 1 800
13 1 860
14 1 920
15 1 980
16 1 1040
17 2 1100
18 2 1160
19 2 1220
20 2 1280
21 2 1340
22 2 1400
23 2 1460
24 2 1520
25 2 1580
26 2 1640
27 2 1700
28 2 1760
29 2 1820
30 2 1880
31 2 1940
32 2 2000
