TECHNICAL DETAILS
LASISTAS 54MI - MODULAR version
PRODUCT DESCRIPTION Turning louvers for 54 x 11 mm wooden-slats.

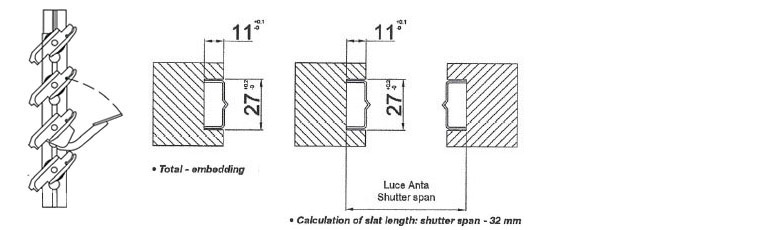

Embedded profile
54mi
MATERIAL - profile in zinc-coated steel and slat-holders in PBT
- profile in aluminium and slat-holders in PBT
TREATMENTS Varnishing with polyester powder for outside.
COLOURS Standard Colours: ochre - brown - black.
Available a vast range of colours.
arrowSee our colour card
PROFILE DIMENSIONS 26 x 11 x 1 mm.
Download PDF PDF

LASISTAS 54MI assures:

  • - traditional shutter reproduction
  • - easy fitting by reverse-rotation accessory of slat-holders
  • - snap-shutting of slats
  • - stock decrease thanks to its “patented” modular version
  • - screws fastening: central
  • - quality of product checked on each piece by our inward supervision.

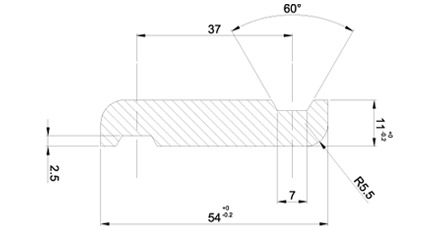

Section profile of the slat
lasistas54MI
lasistas54MI
How to assemble the PBT slat
lasistas70pbt
Slip in the previously treated slat: this should be done gently, as interference could cause stiffening of the closing mechanism.

Once the correct position is reached, the slat-holder will automatically block the slat in position.

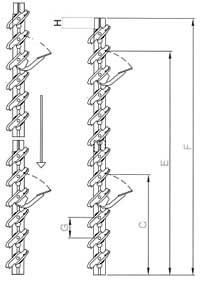

Dimension LASISTAS 54MI - MODULAR version
lasistas54c
  • C - Height of first handle
  • E - Height of second handle
  • F - Height of frame
  • G - Centre distance (= 44,5mm)
  • H - Overlapping (= mm. 24)
SLATS controls PROFILE 26 mm
C E F
6 1 227 - 292
7 1 227 - 336
8 1 227 - 381
9 1 227 - 425
10 1 227 - 470
11 1 227 - 514
12 1 227 - 559
13 1 227 - 603
14 1 405 - 648
15 1 405 - 692
16 1 405 - 737
17 1 405 - 781
18 1 405 - 826
19 1 405 - 870
20 1 405 - 915
21 1 405 - 959
22 1 405 - 1004
23 (11+12) 2 227 716 1049
24 (11+13) 2 227 716 1093
25 (12+13) 2 227 761 1138
26 (13+13) 2 227 805 1182
27 (13+14) 2 227 939 1227
28 (13+15) 2 227 983 1271
29 (14+15) 2 405 1028 1316
30 (14+16) 2 405 1028 1361
31 (15+16) 2 405 1072 1405
32 (15+17) 2 405 1072 1449
33 (16+17) 2 405 1117 1494
34 (16+18) 2 405 1117 1539
35 (17+18) 2 405 1161 1583
36 (17+19) 2 405 1161 1627
37 (18+19) 2 405 1206 1672
38 (18+20) 2 405 1206 1717
39 (18+21) 2 405 1206 1761
40 (19+21) 2 405 1250 1805
41 (20+21) 2 405 1295 1850
42 (20+22) 2 405 1295 1895
43 (21+22) 2 405 1339 1939
44 (22+22) 2 405 1384 1984
