TECHNICAL DETAILS
| LASISTAS 70MI/LAM - STANDARD | ||
|---|---|---|
| PRODUCT DESCRIPTION | Turning louvers for 70 x 11 mm wooden-slats. Top/bottom spot-facing 13 x 13 mm. The machining of the heads allows the slat to be flush with the frame. Embedded profile. |
 |
| MATERIAL | Profile in zinc-coated steel and slat-holders in PBT. Profile in aluminium and slat-holders in PBT. |
|
| TREATMENTS | Varnishing with polyester powder for outside. |
|
| COLOURS | Standard Colours ochre - brown - black. Available a vast range of colours.  See our colour card |
|
| PROFILE DIMENSIONS | 26 x 11 x 1 mm. |
|
| Download PDF |  |
|
LASISTAS 70MI/LAM assures:
- - traditional shutter reproduction
- - easy fitting by reverse-rotation accessory of slat-holders
- - snap-shutting of slats
- - screws fastening: central
- - quality of product checked on each piece by our inward supervision.

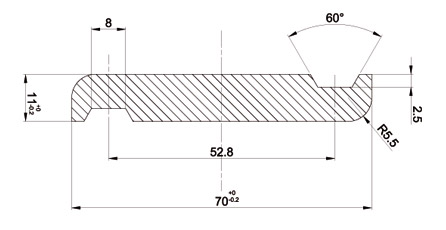

Section profile of the slat

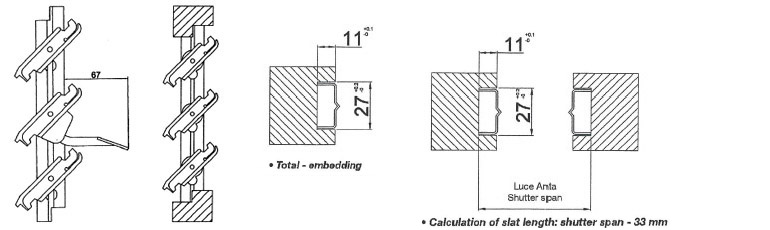

How to assemble the PBT slat
Slip in the previously treated slat: this should be done gently, as interference could cause stiffening of the closing mechanism.
Once the correct position is reached, the slat-holder will automatically block the slat in position.
Once the correct position is reached, the slat-holder will automatically block the slat in position.

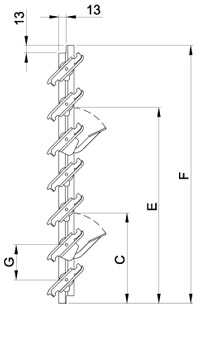

Dimension LASISTAS 70MI/LAM - STANDARD version
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
