TECHNICAL DETAILS
| LASISTAS 54CMR - STANDARD version | ||
|---|---|---|
| PRODUCT DESCRIPTION | Turning louvers for 54 x 11 mm wooden-slats. 26 mm top/bottom extensions with adjustable slat-holders. Embedded profile Lever-rotation |
|
| MATERIAL | Profile in aluminium and slat-holders in PBT | |
| TRATTAMENTI | Varnishing with polyester powder for outside. |
|
| COLOURS | Standard Colour: BLACK Available a vast range of colours.  See our colour card |
|
| PROFILE DIMENSIONS | 26 x 9 mm. | |
| Download PDF |  |
|
LASISTAS 54CMR assures:
- - traditional shutter reproduction
- - easy fitting by reverse-rotation accessory of slat-holders
- - snap-shutting of slats
- - screws fastening: central
- - quality of product checked on each piece by our inward supervision.

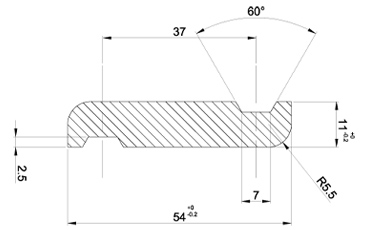

Section profile of the slat

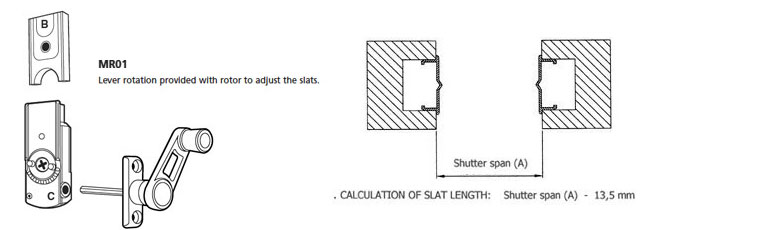

Instructions of mechanism fixing for turning the slats.

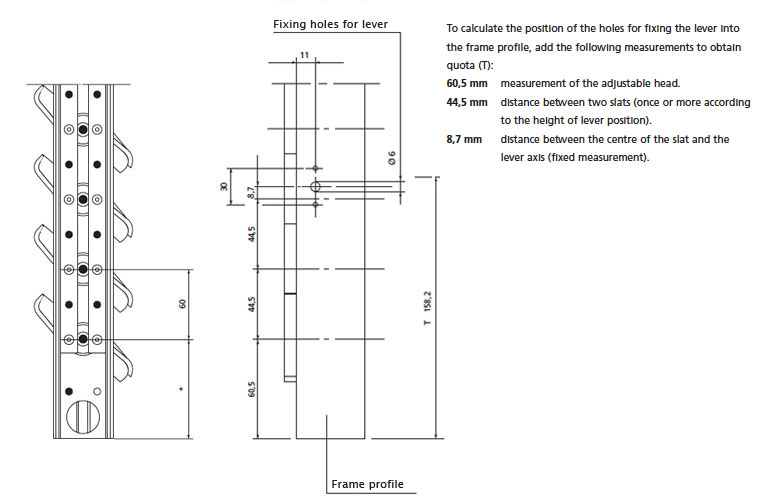

To obtain the hole position of the lever into the frame profile.
How to assemble the PBT slat
Slip in the previously treated slat: this should be done gently, as interference could cause stiffening of the closing mechanism.
Once the correct position is reached, the slat-holder will automatically block the slat in position.
Once the correct position is reached, the slat-holder will automatically block the slat in position.

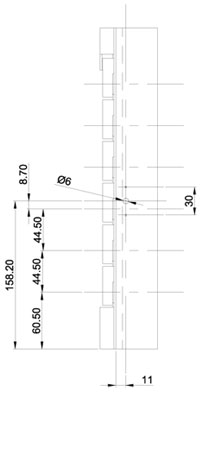

Dimension LASISTAS 54CMR - STANDARD version
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
