TECHNICAL DETAILS
LASISTAS 96 - STANDARD and MODULAR version
PRODUCT DESCRIPTION Turning louvers for 96 x 13,5 mm wooden-slats
MATERIAL Profile and slat-holders in zinc-coated steel
TREATMENTS Varnishing with polyester powder for outside on finished product.
COLOURS Standard Colours: ochre - brown - black.
Available a vast range of colours.
arrowSee our colour card
PROFILE DIMENSIONS 36 x 13 x 1 mm
26 x 11 x 1 mm.
Download PDF PDF

LASISTAS 96 assures:

  • - easy fitting by reverse-rotation accessory of slat-holders
  • - better tightness of wooden slats for the peculiar shape of slat-holders
  • - space saving on profile 26, and central screws fastening (instead of lateral ones)
  • - quality of the product checked on each piece by our inward supervision

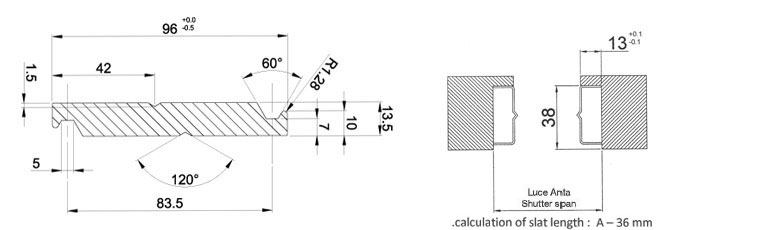

lasistas_96_dis
Embedding application - Profile 36 mm
Semi-embedding
applicazione_incasso_36mm
Total-embedding
applicazione_incasso_36mm
Partial-embedding
applicazione_incasso_36mm
Embedding application - Profile 26 mm
Semi-embedding
applicazione_incasso_26mm
Total-embedding
applicazione_incasso_26mm
Partial-embedding
applicazione_incasso_26mm

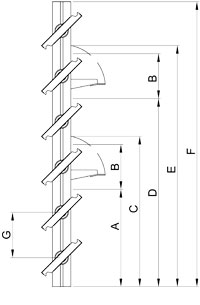

Dimensions LASISTAS 96 - STANDARD
lasistas96s
  • A - Height of first slit
  • B - Dimensions of slit
  • C - Height of first handle
  • D - Height of second slit
  • E - Height of second handle
  • F - Height of frame
  • G - Centre distance (=89mm)
SLATS controls PROFILE 36 mm
A B C D E F
3 1 102 103 205 - - 292
4 1 191 103 294 - - 381
5 1 191 103 294 - - 470
6 1 280 103 383 - - 559
7 1 280 103 383 - - 648
8 1 369 103 472 - - 737
9 1 369 103 472 - - 826
10 1 458 103 561 - - 915
11 1 458 103 561 - - 1004
12 2 280 103 383 814 917 1093
13 2 280 103 383 903 1006 1182
14 2 280 103 383 903 1006 1271
15 2 369 103 472 992 1095 1360
16 2 369 103 472 1081 1184 1449
17 2 369 103 472 1170 1273 1538
18 2 369 103 472 1170 1273 1627
19 2 458 103 561 1259 1362 1716
20 2 458 103 561 1348 1451 1805
21 2 458 103 561 1437 1540 1894
22 2 458 103 561 1437 1540 1983
lasistas96s
  • A - Height of first slit
  • B - Dimensions of slit
  • C - Height of first handle
  • D - Height of second slit
  • E - Height of second handle
  • F - Height of frame
  • G - Centre distance (=89mm)
SLATS controls PROFILO 26 mm
A B C D E F
3 1 110 87 197 - - 292
4 1 110 87 197 - - 381
5 1 110 87 197 - - 470
6 1 110 87 197 - - 559
7 1 288 87 375 - - 648
8 1 288 87 375 - - 737
9 1 288 87 375 - - 826
10 1 466 87 553 - - 915
11 1 466 87 553 - - 1004
12 2 110 87 197 644 731 1093
13 2 288 87 375 733 820 1182
14 2 110 87 197 822 909 1271
15 2 288 87 375 1000 1087 1360
16 2 288 87 375 1000 1087 1449
17 2 288 87 375 1089 1176 1538
18 2 288 87 375 1089 1176 1627
19 2 466 87 553 1178 1265 1716
20 2 466 87 553 1356 1443 1805
21 2 466 87 553 1445 1532 1894
22 2 466 87 553 1445 1532 1983
MODULAR version - PATENTED
lasistas96_brevetto
The modular version (patented) is particularly interesting. Thanks to its special coupling, it is possible to obtain any length required, simply by overlapping the posts.

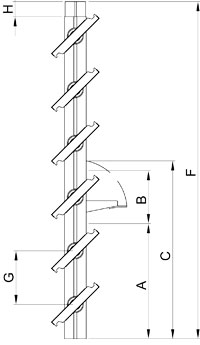

Dimension LASISTAS 96 - MODULAR version
lasistas96c
  • A - Height of slit
  • B - Dimensions of slit
  • C - Height of handle
  • F - Height of frame
  • G - Centre distance (= 89 mm.)
  • H - Overlapping (= mm. 25)
SLATS controls PROFILE 36 mm
A B C F
3 1 102 103 205 292
4 1 191 103 294 381
5 1 191 103 294 470
6 1 280 103 383 559
7 1 280 103 383 648
8 1 369 103 472 737
9 1 369 103 472 826
10 1 458 103 561 915
11 1 458 103 561
lasistas96c
  • A - Height of slit
  • B - Dimensions of slit
  • C - Height of handle
  • F - Height of frame
  • G - Centre distance (= 89 mm.)
  • H - Overlapping (= mm. 25)
SLATS controls PROFILE 26 mm
A B C F
3 1 110 87 197 292
4 1 110 87 197 381
5 1 110 87 197 470
6 1 110 87 197 559
7 1 288 87 375 648
8 1 288 87 375 737
9 1 288 87 375 826
10 1 466 87 553 915
11 1 466 87 553 1004
