TECHNICAL DETAILS
| LASISTAS 70CML - STANDARD | ||
|---|---|---|
| PRODUCT DESCRIPTION | Turning louvers for 70 x 11 mm wooden-slats. 30 mm top/bottom extensions with adjustable slat-holders. Embedded profile. Handle-lever. |
|
| MATERIAL | Profile in aluminium and slat-holders in PBT. | |
| TREATMENTS | Varnishing with polyester powder for outside. | |
| COLOURS | Standard colours: black. | |
| PROFILE DIMENSIONS | 26 x 11 x 1 mm. | |
| Download PDF |  |
|

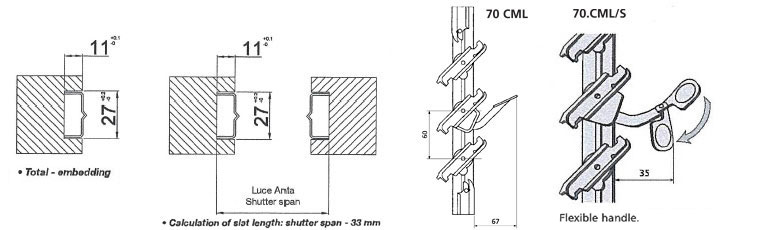

LASISTAS 70CML assures:
- - traditional shutter reproduction
- - easy fitting by reverse-rotation accessory of slat-holders
- - snap-shutting of slats
- - screws fastening: central
- - quality of product checked on each piece by our inward supervision.

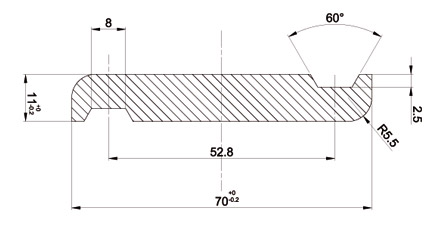

Section profile of the slat
How to assemble the PBT slat
Slip in the previously treated slat: this should be done gently, as interference could cause stiffening of the closing mechanism.
Once the correct position is reached, the slat-holder will automatically block the slat in position.
Once the correct position is reached, the slat-holder will automatically block the slat in position.

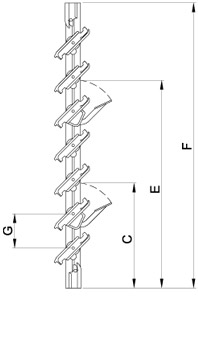

Dimension LASISTAS 70CML - STANDARD version
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
