TECHICAL DETAILS
LASISTAS 70 - STANDARD and MODULAR
PRODUCT DESCRIPTION Turning louvers for 70 x 11 mm wooden-slats.
MATERIAL The following combinations are available standard and modular versions:
- profile and slat-holders in zinc-coated steel
- profile in zinc-coated steel and slat-holders in PBT
- profile and slat-holders in aluminium
- profile in aluminium and slat-holders in PBT
TREATMENTS Varnishing with polyester powder for outside on finished product.
COLOURS Standard Colours: ochre - brown - black.
Available a vast range of colours.
arrowSee our colour card
PROFILE DIMENSIONS 36 x 13 x 1 mm
26 x 11 x 1 mm
Download PDF PDF

LASISTAS 70 assures:

  • - traditional shutter reproduction
  • - easy fitting by reverse-rotation accessory of slat-holders
  • - screws fastening: central
  • - quality of product checked on each piece by our inward supervision.

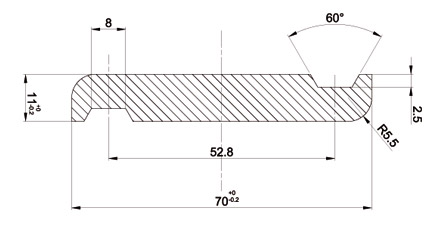

Section profile of the slat
lasistas70

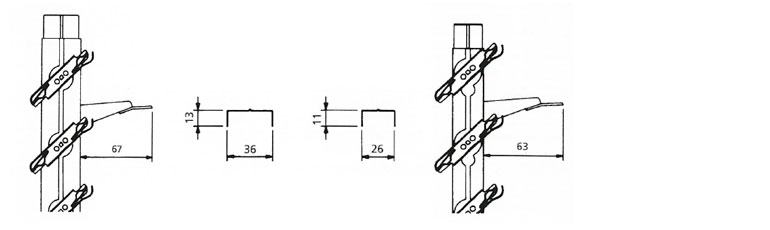

Version with slat-holders in steel or aluminium
dis70

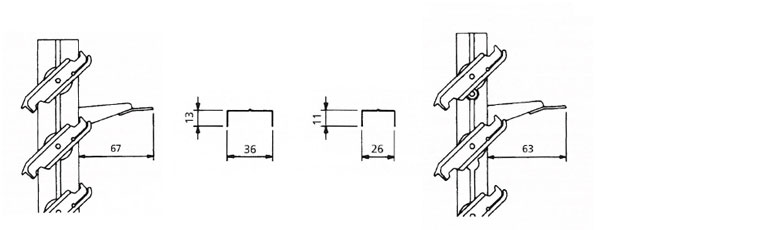

Version with slat-holders in PBT
dis70
Embedding application - Profile 36 mm
Semi-embedding
applicazione_incasso_36mm
Total-embedding
applicazione_incasso_36mm
Partial-embedding
applicazione_incasso_36mm
Embedding application - Profile 26 mm
Semi-embedding
applicazione_incasso_26mm
Total-embedding
applicazione_incasso_26mm
Partial-embedding
applicazione_incasso_26mm
How to assemble the PBT slat
lasistas70pbt
Slip in the previously treated slat: this should be done gently, as interference could cause stiffening of the closing mechanism.

Once the correct position is reached, the slat-holder will automatically block the slat in position.

In the version with steel or aluminium slat-holders, after slipping in the slats, close the slat-holder by moving the metal  key towards the slat until they adhere.

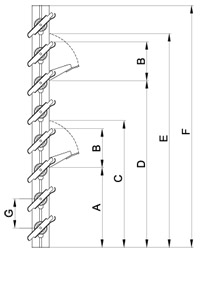

Dimension LASISTAS 70 - STANDARD version
lasistas70s
  • A - Height of first slit
  • B - Dimensions of slit
  • C - Height of first handle
  • D - Height of second slit
  • E - Height of second handle
  • F - Height of frame
  • G - Centre distance (= 60 mm)
SLATS controls PROFILE 36 mm
A B C D E F
6 1 166 97 263 - - 380
7 1 166 97 263 - - 440
8 1 166 97 263 - - 500
9 1 166 97 263 - - 560
10 1 166 97 263 - - 620
11 1 166 97 263 - - 680
12 1 169 97 263 - - 740
13 1 346 97 443 - - 800
14 1 346 97 443 - - 860
15 2 346 97 443 - - 920
16 2 346 97 443 - - 980
17 2 166 97 263 586 683 1040
18 2 166 97 263 586 683 1100
19 2 166 97 263 586 683 1160
20 2 166 97 263 646 743 1220
21 2 166 97 263 706 803 1280
22 2 166 97 263 766 863 1340
23 2 166 97 263 826 923 1400
24 2 166 97 263 886 983 1460
25 2 166 97 263 946 1043 1520
26 2 166 97 263 946 1043 1580
27 2 166 97 263 1066 1163 1640
28 2 166 97 263 1066 1163 1700
29 2 346 97 443 1186 1283 1760
30 2 346 97 443 1186 1283 1820
31 2 346 97 443 1246 1343 1880
32 2 346 97 443 1306 1403 1940
lasistas70s
  • A - Height of first slit
  • B - Dimensions of slit
  • C - Height of first handle
  • D - Height of second slit
  • E - Height of second handle
  • F - Height of frame
  • G - Centre distance (= 60 mm)
SLATS controls PROFILE 26 mm
A B C D E F
6 1 169 87 263 - - 380
7 1 169 87 263 - - 440
8 1 169 87 263 - - 500
9 1 169 87 263 - - 560
10 1 169 87 263 - - 620
11 1 169 87 263 - - 680
12 1 169 87 263 - - 740
13 1 349 87 443 - - 800
14 1 349 87 443 - - 860
15 2 349 87 443 - - 920
16 2 349 87 443 - - 980
17 2 169 87 263 589 683 1040
18 2 169 87 263 589 683 1100
19 2 169 87 263 589 683 1160
20 2 169 87 263 649 743 1220
21 2 169 87 263 709 803 1280
22 2 169 87 263 769 863 1340
23 2 169 87 263 829 923 1400
24 2 169 87 263 889 983 1460
25 2 169 87 263 949 1043 1520
26 2 169 87 263 949 1043 1580
27 2 169 87 263 1069 1163 1640
28 2 169 87 263 1069 1163 1700
29 2 349 87 443 1189 1283 1760
30 2 349 87 443 1189 1283 1820
31 2 349 87 443 1249 1343 1880
32 2 349 87 443 1309 1403 1940
MODULAR version - PATENTED
lasistas70_brevetto
The modular version (patented) is particularly interesting. Thanks to its special coupling. it is possible to obtain any length required, simply by overlapping the posts.

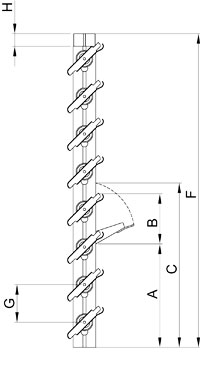

Dimension LASISTAS 70 - MODULAR VERSION
lasistas70c
  • A - Height of slit
  • B - Dimensions of slit
  • C - Height of handle
  • F - Height of frame
  • G - Height of frame g – centre distance (= 60 mm.)
  • H - overlapping(= 20 mm)
SLATS controls PROFILE 36 mm
A B C F
6 1 166 97 263 380
7 1 166 97 263 440
8 1 166 97 263 500
9 1 166 97 263 560
10 1 166 97 263 620
11 1 166 97 263 680
12 1 166 97 263 740
13 1 346 97 443 800
14 1 346 97 443 860
15 1 346 97 443 920
16 1 346 97 443 980
lasistas70c
  • A - Height of slit
  • B - Dimensions of slit
  • C - Height of handle
  • F - Altezza montante
  • G - Height of frame g – centre distance (= 60 mm.)
  • H - overlapping(= 20 mm)
SLATS controls PROFILE 26 mm
A B C F
6 1 169 87 263 380
7 1 169 87 263 440
8 1 169 87 263 500
9 1 169 87 263 560
10 1 169 87 263 620
11 1 169 87 263 680
12 1 169 87 263 740
13 1 349 87 443 800
14 1 349 87 443 860
15 1 349 87 443 920
16 1 349 87 443 980
