TECHNICAL DETAILS
LASISTAS 54 - MODULAR version
PRODUCT DESCRIPTION Turning louvers for 54 x 11 mm wooden-slats.
MATERIAL - profile in zinc-coated steel and slat-holders in PBT
- profile in aluminium and slat-holders in PBT
TREATMENTS Varnishing with polyester powder for outside.
COLOURS Standard colours: ochre - brown - black.
Available a vast range of colours.
arrowSee our colour card
PROFILE DIMENSIONS 36 x 13 x 1 mm
26 x 11 x 1 mm.
Download PDF PDF

LASISTAS 54 assures:

  • - traditional blind reproduction
  • - snap-shutting of slats
  • - easy fitting by reverse-rotation  accessory of slat-holders
  • - stock decrease thanks to its patented modular version
  • - space saving on profile 26, with central fastening screws (instead of lateral ones)
  • - quality of product checked on each piece by our inward supervision
Section profile of the slat
lasistas54
lasistas54

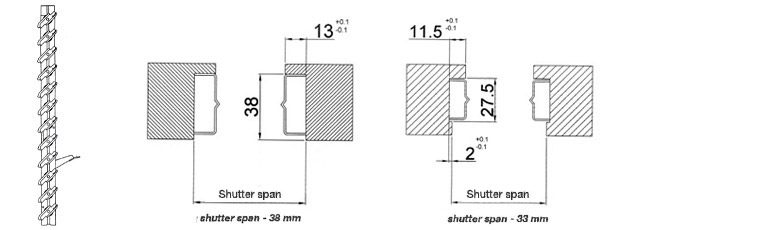

Embedding application - Profile 36 mm
Semi-embedding
applicazione_incasso_36mm
Total-embedding
applicazione_incasso_36mm
Partial-embedding
applicazione_incasso_36mm
Embedding application - Profilo 26 mm
Semi-embedding
applicazione_incasso_26mm
Total-embedding
applicazione_incasso_26mm
Partial-embedding
applicazione_incasso_26mm
How to assemble the PBT slat
lasistas70pbt
Slip in the previously treated slat: this should be done gently, as interference could cause stiffening of the closing mechanism.

Once the correct position is reached, the slat-holder will automatically block the slat in position.
MODULAR version - PATENTED
lasistas70_brevetto
The modular version (patented) is particularly interesting. Thanks to its special coupling. it is possible to obtain any length required, simply by overlapping the posts.

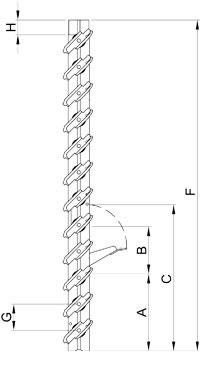

Dimension LASISTAS 54 - MODULAR
lasistas54c

  • A - Height of slit
  • B - Dimensions of slit
  • C - Height of handle
  • F - Height of frame
  • G - Centre distance (= 44.5 mm)
  • H - Overlapping (= 24 mm)

SLATS controls PROFILE 36 mm
A B C F
6 1 129 95 224 292
7 1 129 95 224 336
8 1 129 95 224 381
9 1 129 95 224 425
10 1 129 95 224 470
11 1 129 95 224 514
12 1 129 95 224 559
13 1 129 95 224 603
14 1 307 95 402 648
15 1 307 95 402 692
16 1 307 95 402 737
17 1 397 95 492 781
18 1 397 95 492 826
19 1 397 95 492 870
20 1 397 95 492 915
21 1 397 95 492 959
22 1 397 95 492 1004
lasistas54c

  • A - Height of slit
  • B - Dimensions of slit
  • C - Height of handle
  • F - Height of frame
  • G - Centre distance (= 44.5 mm)
  • H - Overlapping (= 24 mm)

SLATS controls PROFILE 26 mm
A B C F
6 1 133 87 218 292
7 1 133 87 218 336
8 1 133 87 218 381
9 1 133 87 218 425
10 1 133 87 218 470
11 1 133 87 218 514
12 1 133 87 218 559
13 1 133 87 218 603
14 1 311 87 396 648
15 1 311 87 396 692
16 1 311 87 396 737
17 1 311 87 396 781
18 1 311 87 396 826
19 1 311 87 396 870
20 1 311 87 396 915
21 1 311 87 396 959
22 1 311 87 396 1004
